Whether you are in the studio, playing on stage, or just practicing at home, every note that leaves this guitar will be articulate and rich. Solo playing will soar without compromising the overall balance of the guitar.
If you wish to match vintage specs for this model, use an Adirondack Spruce top and Honduras Mahogany sides and back, which will match the tonal quality of the original model produced in 1933.
Also, with a medium sized body, this instrument will be comfortable for players of all physical statures. With the neck joining the body at the 14th fret, it will allow you to reach the upper registers without the need for a cutaway.
The following tabs detail what you will receive from our OM-14 Fret Guitar Plans.
Total Instrument Length: 1013mm (39.88”)
Upper Bout: 288.7mm (11.37”)
Lower Bout: 381.1mm (15.00”)
Waist: 234.3mm (9.22”)
Body Length: 485.8mm (19.13”)
Depth At Heel: 79.3mm (3.12”)
Depth At Butt: 104.5mm (4.11”)
Neck Width @ Nut: 44.4mm (1.75”)
Neck Width @ Body: 54.5mm (2.15”)
Fretboard Radius: 406.4mm (16.0”)
Scale Length: 645.2mm (25.4”)
14-Fret Neck - Standard Width
Neck Connection: Bolt-On, Dovetail, or Mortise
Fretboard Radius & Neck Profile Sections
Closed Pegged w/3L & 3R Tuners
Larger Bodied Guitar
Traditional X-Bracing
Adjustable Truss Rod in Neck
Standard Acoustic Belly Bridge, & One Optional Shape
Ideal for Flatpicking & Fingerpicking
5 Sheets of Drawings
Overall guitar plan with notes and dimensions
Details of Complicated Construction Areas & supplemental Photographs of Key Construction Items + Descriptions
Longitudinal and Lateral Sections Through The Guitar.
Top Bracing Layouts Top and Side Views
Three Neck/Body Connection Options: Bolt-on, Dovetail, Mortise & Tenon.
Two Belly Bridge Shape Options
Enlarged Purfling Details
Back layout and Back Brace layouts
Complete Template Sets Including: Top, Side Contour, Neck Contour, Bender Form Insert, Headpiece Layout, Back Arch Template & Top Layout Template
3 Sheets of Drawings
Inside Form Plan Top Front and Side Views & Details
Workboard Layout

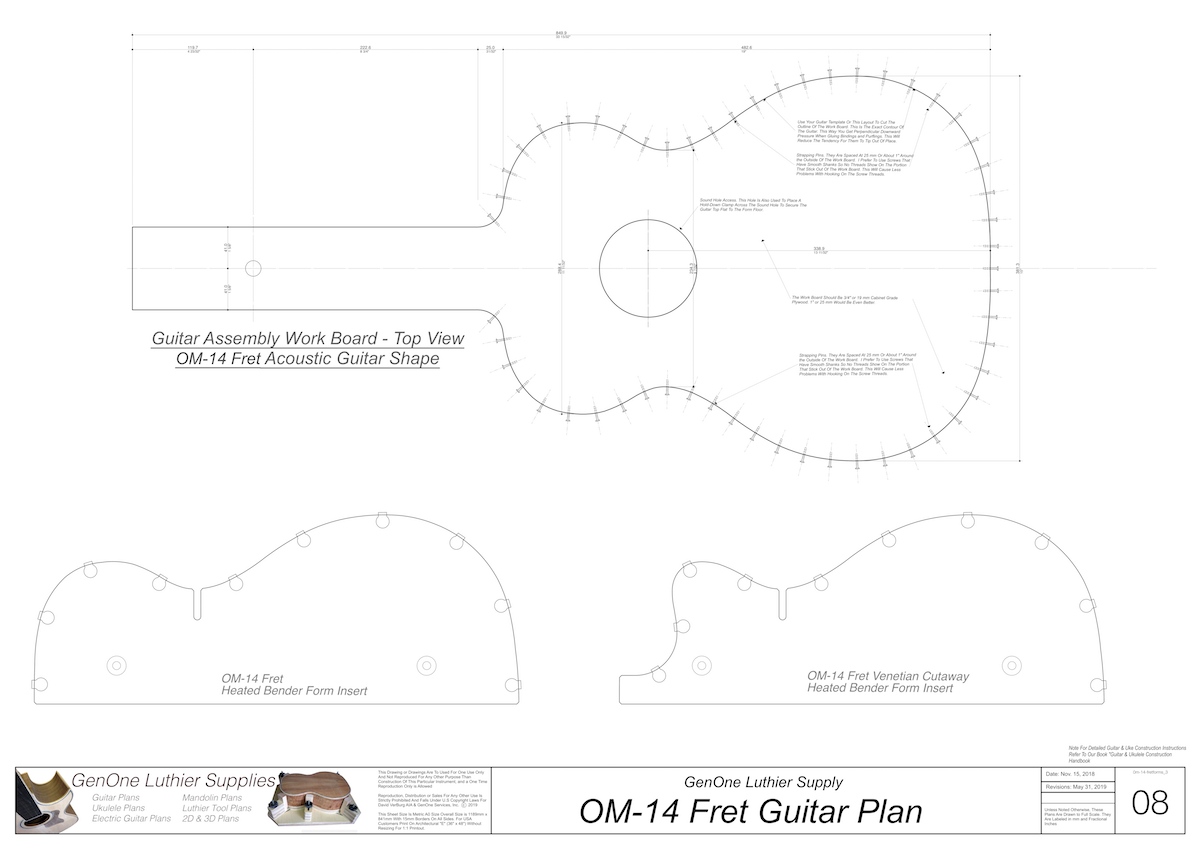

2 CAD Files in .DWG & .DXF Format. The Last Image on This Sales Pages Shows The Content of These Files.
