When first introduced this was a no-nonsense, American-made rocker that was offered at an excellent value! This Jazz Bass is an American made instrument, borrowing heavily from the successful formula of the same series guitars. These basses sustain the classic American styling and tone!
Note: As ALL of our plans are sold as digital downloads, when you complete your plan purchase with us, you will automatically be given a download link to access the plans.
The following tabs detail what you will receive with our Solid Body Electric Bass Guitar Plan #4:
**GenOne Luthier Supply is not affiliated with any guitar manufacturer, nor are our plans exact replicas of any guitar**
Scale: 34" (863.6mm) Body Maximum Length = 20.56" (522.3mm) Body Maximum Width = 12.289 (327.5mm) Body Thickness = (41.7mm) 1-3/4" Number of Frets = 20 Number of Strings = 4 Nut Width = 1.5" (38.1mm) Fretboard Width at 21st Fret = 2.5" (63.5mm) Fretboard Maximum Thickness = 3/16" (4.75mm) Fretboard Radius = 9.5" (241.3mm) Neck Reinforcement = 24" Dual Action Adjustable Truss Rod with Spoke Nut. Adjustable at Body Neck Attachment: (4) Neck Bolts w/ Neck Attachment Plate. Alternate Attachment w/ (4) Neck Bolts and Furrels Peghead Type: Standard Bass Type. Alternate Peghead Type 14 Degree Peghead w/ Several Alternative Headpiece Configurations Tuning Machines - Straight Type Headpiece: Schaller Original F-Series BMF (4) Left; Thrust Bearing =.689” (17.5mm) 1:20 Gear Ratio Tuning Machines - 14 Degree Headpiece: Grover Titan Electric Bass Machines (145 Series) (2) Left; (2) Right; Thrust Bearing = .657” (16.7mm); 20:1 Gear Ratio Bridge: Schaller 4-String Roller Bass Bridge w/Variable String Spreads From 20-3/32” to 2-1/2” (53.39mm to 63.50mm)
Number of Pickups: 2 Pickups: Based on Seymour Duncan Matched Set. 4-String Antiquity II for Jazz Bass Neck & Bridge Pickups #11044-05 & 06
Tone Controls: (1) Pot for Both Pickups Volume Controls: (1) Pot for Each Pickup Jack: Standard Top Mounted 1/4" Mono Phone Plug w/ Jack Plate
Bass Electric Guitar Plan #4 Content:

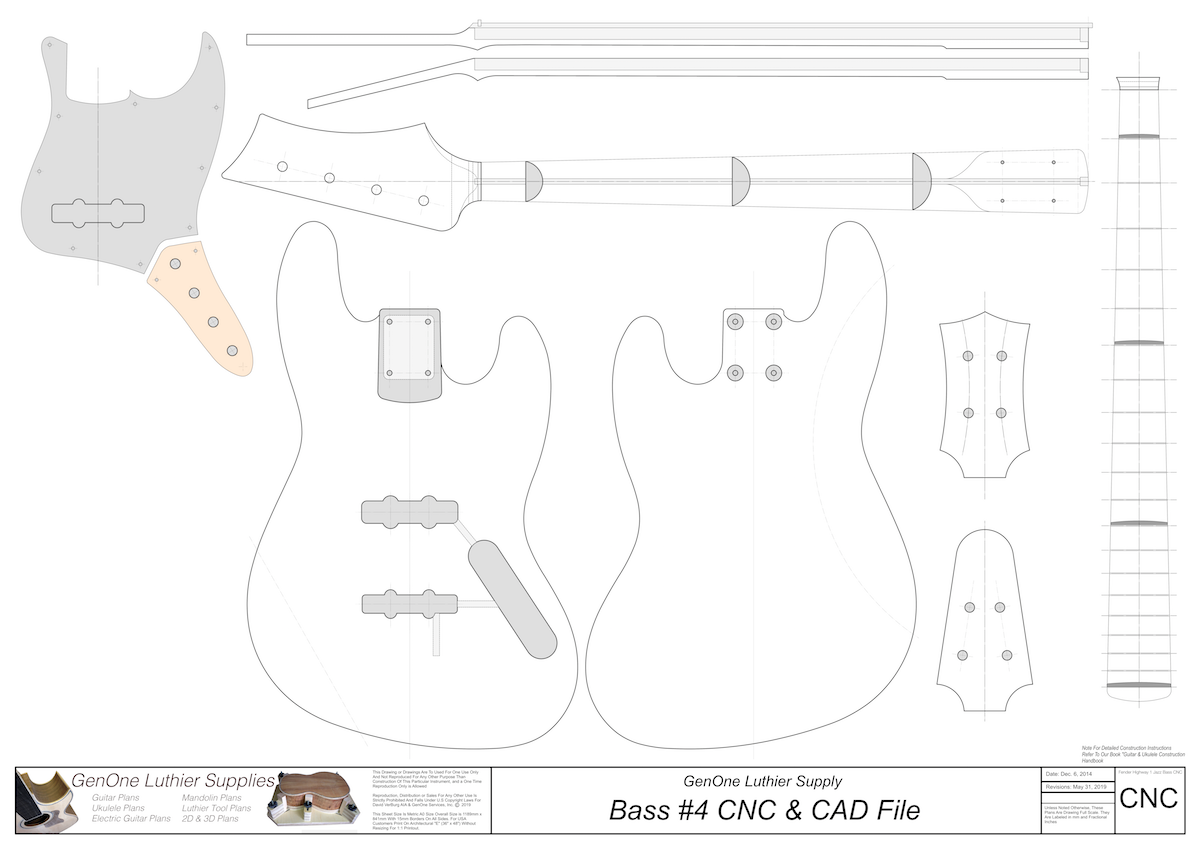

Guitar Plan Showing Top of Entire Guitar, Inc. Fretboard & Headpiece Bass Guitar Back View Bass Guitar Left Side View Lateral Section Through Body Longitudinal Section Through Body, Neck & Peghead Neck Sections @ 1st, 6th and 12th Frets Alternate Neck Attachment Detail w/ Furrels & Neck Bolts Body Cavity Layout Showing all Routed Cavities for Pickups, Wiring, Controls Etc. Alternate Headpiece Layouts & Detail Detailed Wiring Diagram Fret Spacing Table
The Included Template Sheet provides you with the following template layouts:
Body + Cavity Routing Template for Body Shape, Pickup and Control Cavities, Wiring Channels Neck Profile & Plan Incl. Headpiece & Tuner Layouts Alternate Headpiece Layouts w/ Tuner Layouts Pickguard Routing Template Fretboard Routing Template, Incl. Fret Positions and Fretboard Radius Guides
