The Jumbo or J200 is known as the "King of the Flattops", and when you get one in your hands you will understand why. This guitar features a loud, clear voice for either delicate fingerpicking or strumming with a flatpick. The impressive features and stature of this guitar are legendary, as this may be the largest production guitar made today. This plan is the 12-String version of the J-200.
Many subtle variations can be introduced to this guitar to change the tone and volume characteristics. Use a quality AAA or even AAAA Sitka Spruce top for best sound and volume production. For more volume use one of the Rosewoods for the back and sides, Walnut will offer warmer tones and balance as will Rock Maple.
Note: As ALL of our plans are sold as digital downloads, when you complete your plan purchase with us, you will automatically be given a download link to access the plans.
The following tabs detail what you will receive on our J200 12-String Guitar Plans:
Total Instrument Length: 1106.3mm (41.9”)
Upper Bout: 318.6mm (12.54”)
Lower Bout: 432.9mm (17.04”)
Waist: 261.9mm (10.31”)
Body Length: 532mm (20.94”)
Depth At Heel: 107.3mm (4.22”)
Depth At Butt: 132.7mm (5.22”)
Neck Width @ Nut: 47.6mm (1.75”)
Neck Width @ Body: 55.2mm (2.15”)
Fretboard Radius: 406.4mm (16.0”)
Scale Length: 647.7mm (25.5”)
Classic Jumbo Shape
14-Fret Neck - Standard Width
Neck Connection: Bolt-On, Dovetail, or Mortise
Fretboard Radius & Neck Profile Sections
Closed Pegged w/3L & 3R Tuners Larger Bodied Guitar
Adjustable Truss Rod in Neck
Mustache Bridge, & One Optional Shape
Ideal for Flatpicking & Rhythm
Overall guitar plan with notes and dimensions
Details of Complicated Construction Areas & supplemental Photographs of Key Construction Items + Descriptions
Longitudinal and Lateral Sections Through The Guitar.
Top Bracing Layouts Top and Side Views
Three Neck/Body Connection Options: Bolt-on, Dovetail, Mortise & Tenon.
Mustache Bridge and Belly Bridge Shape Options
Enlarged Purfling Details
Back layout and Back Brace layouts
Complete Template Sets Including: Top, Side Contour, Neck Contour, Bender Form Insert, Headpiece Layout, Back Arch Template & Top Layout Template
If you are going to send out your plans to a Digital Printing Service, this article is a Must Read!Plan Printing Instructions
Click the button below to see more detail about our Guitar Plans and information you will receiveAcoustic Guitar Plan FAQ's
Add the Inside Form Package to your order to bring your guitar builds to a higher level of quality.Inside Form Package FAQ's

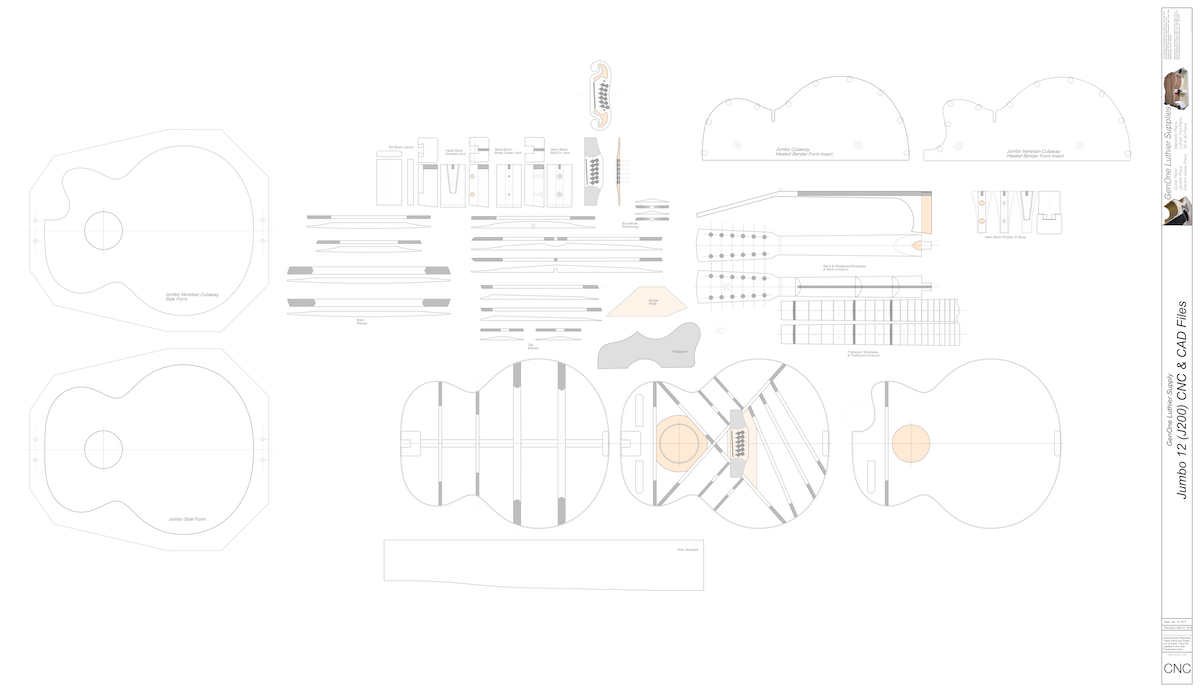

Use these files to help generate CNC Files for your CNC machinery.2D CNC File FAQ's
